2242 SSD Heatsink

Description

M.2 2242 Copper Heatsink Kit

1 piece 40mm Heatsink 2242 40x26x4mm + Thermal Conductive Adhesive Tape  (40mmx26mmx4mm) (Copper 40mm)

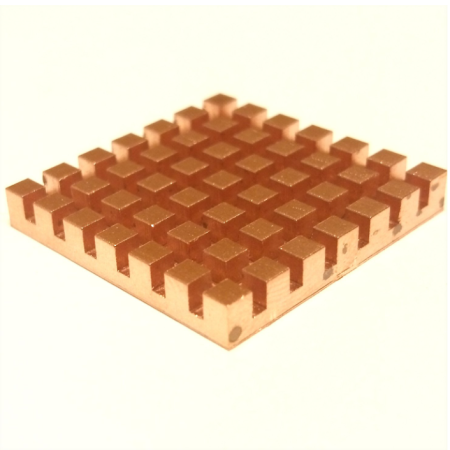

40mm (L) x 26mm (W) x 4mm (H) copper heat sink kit is made from C1100 alloy with high thermal conductivity, durable structure stability and light weight. The heat sink engraved in vertical and horizontal grooves, that is greatly increases the heat dissipation function. This kit of heat sink comes with pre-applied 40x26mm thermal conductive adhesive tape (datasheet-8810.pdf), for easy installation and optimum heat conductivity.

1 piece 40x26mm copper heatsink together with thermal conductive adhesive tape is easy to install and efficient in heat conduction from power source. This 40mm copper heat sink kit is suitable for a variety of cooling applications specially for cooling mSATA M.2 2242 SSD Mini-SATA. . These heat sinks have profiles which are short enough to fit within standard cases. Can be applied for cooling: mSATA M.2 2242 SSD Mini-SATA.

• Mini-SATA M.2 copper heatsink 2242

• Material: Engraved C1100 Copper
• Color: Copper tone
• Coating: Pure copper
• Dimension: 40mm x 26mm x 4mm (L*W*H)
• Weight: 26 gram per piece
• Mounting Style: SMD/SMT
• Fin Style: Vertical
• Number of fins: 9×6
• Included 3M™ 8810 thermal conductive adhesive tape

• Tape Thermal Conductivity: 0.60 W/m-K (datasheet-8810.pdf)
• Standard: RoHS Compliance
• Model No: 402604C01-8810
• Package Includes: 1 pieces Mini SATA M.2 copper heat sink 2242
