40mm Heatsink 40mmx30mmx5mm

Description

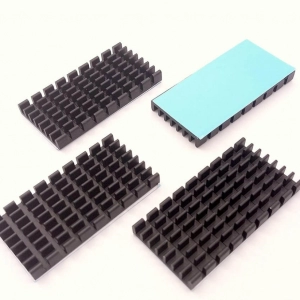

4pcs 40mm Heatsink 40x30x10mm + pre Applied 3M 8810 Thermal Conductive Adhesive Tape for Cooling Cooler Raspberry Pi, Development Boards Electonic Devices Modules (40mmx30mmx5mm) Black

40mm (L) x 30mm (W) x 5mm (H) extruded aluminum heat sink kit is made from 6063-T5 aluminum alloy with high thermal conductivity 201 W/m.K, structure stability and light weight. The heat sink extrusion is in vertical and horizontal grooves, that is greatly increases the heat dissipation function. The surface of extruded aluminum is anodized in black. This kit of heat sink comes with 40x30mm pre-applied thermal conductive adhesive tape (datasheet-8810.pdf), for easy installation and optimum heat conductivity.

4pcs anodized black 40mmx30mmx5mm heatsink together with pre-applied thermal conductive adhesive tape is easy to install and efficient in heat conduction from power semiconductor sources BGA. This 40mm heatsink kit is suitable for a variety of cooling applications such as Raspberry Pi, LED, SOC, VRAM, RAM, IC Chips, etc.

• 40mm aluminum heatsink kit

• Material: Extruded Aluminum 6063-T5
• Color: Black
• Coating: Anodized
• Dimension: 40mm x 30mm x 5mm (L*W*H)
• Weight: 9 gram per piece
• Mounting Style: SMD/SMT
• Fin Style: Vertical
• Number of fins: 14×7
• Pre applied 3M™ 8810 thermal conductive adhesive tape

• Tape Thermal Conductivity: 0.60 W/m-K (datasheet-8810.pdf)
• Standard: RoHS compliance
• Model No: 403005B04-8810
• Package Includes: 4 pieces aluminum heatsink 40mmx30mmx5mm
