40mm Fan 4010 5V DC

Description

Raspberry Pi Fan 40mm 4010, Raspberry Pi Cooling Fan Brushless 3.3V 5V DC Quiet Fan for Raspberry Pi 4 b, 3 b , 3, Pi 2, Pi B+, RetroFlag NESPI Case (40mmx40mmx10mm) (Black 4-Pack).

EDL4010C05 raspberry pi cooling fan is built for low-noise and durable cooling performance. This fan is suitable for Raspberry Pi B / Raspberry Pi B+ / Raspberry Pi A+ / Raspberry Pi 2 / Raspberry Pi 3 and Pi 4 model B. The One-to-Two wire connector pins of this fan, can get connected into Raspberry Pi 3.3V or 5V pin to provide optional fan speed and optimum air flow adjustment. This fan can be installed for most of the standard Raspberry Pi cases. Can be used for cooling Raspberry Pi 4, 3 B+, Thermoelectric Peltier Module TEC1-12706 and other robotic projects.

Specifications:

– Bearing: Sleeve Bearing

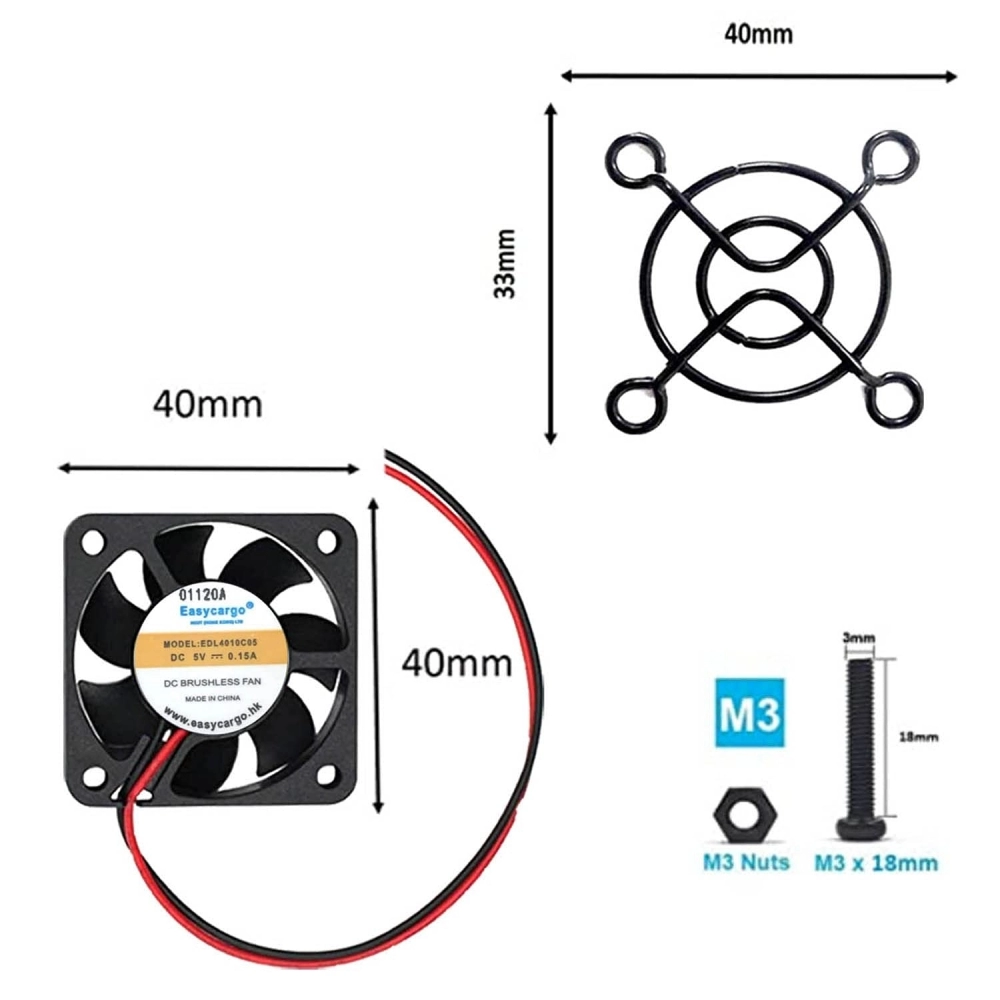

– Dimension: 40x40x10mm (LxWxH)

– Connector: 2-pin separated connectors

– Wire length: 3.2 inch (80mm)

– Weight: 12.8 gram

– Air flow: (5.49 CFM)

– Speed: (7500rpm)

– Noise level: (18.1dBA)

– Air pressure: (2.87AmmAq)

– Life time: (40,000 hours)

– Working Voltage: (3.3-5.5VDC)

– Start-up Voltage: (3.3VDC)

– Current: (100mA)

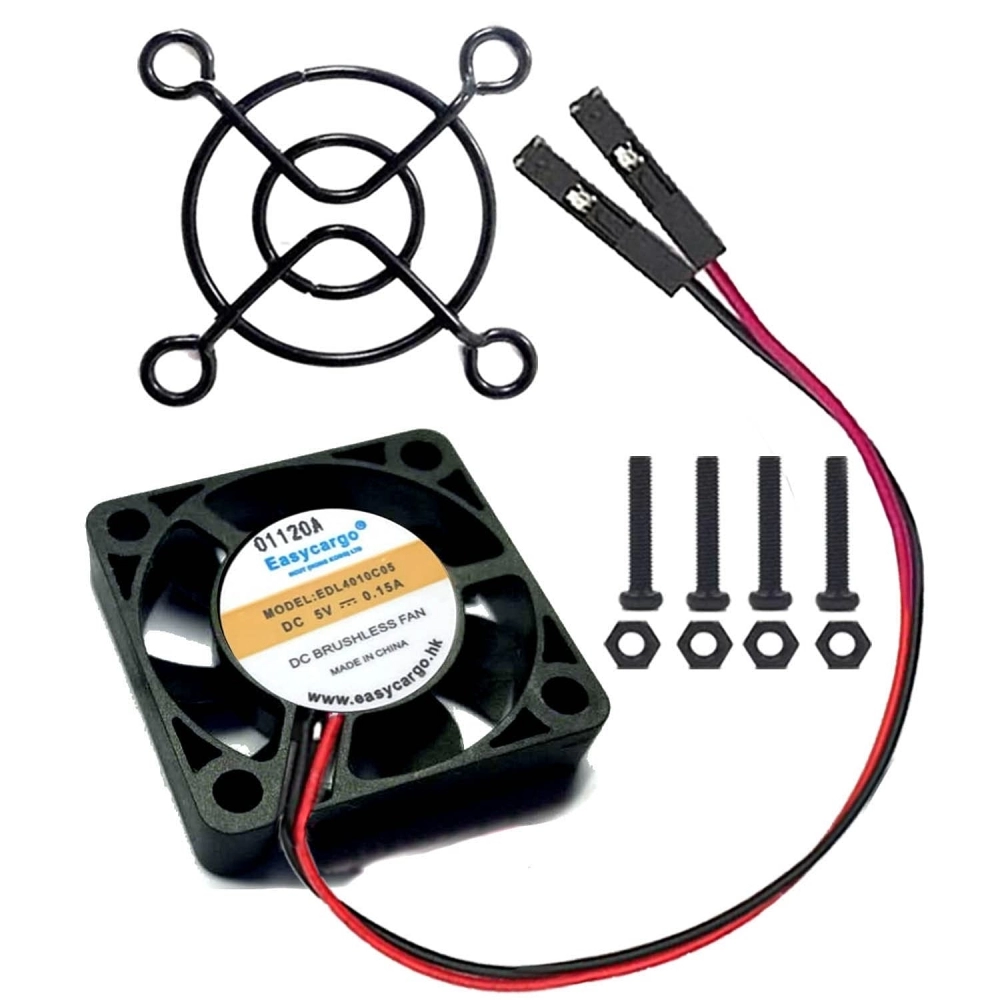

Package includes:

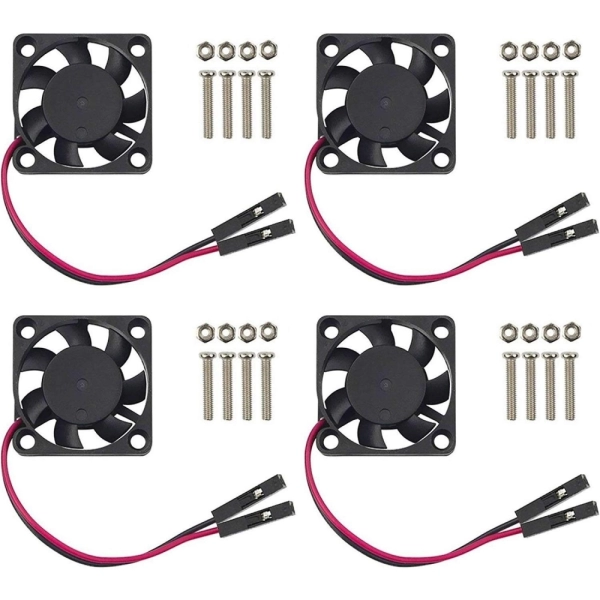

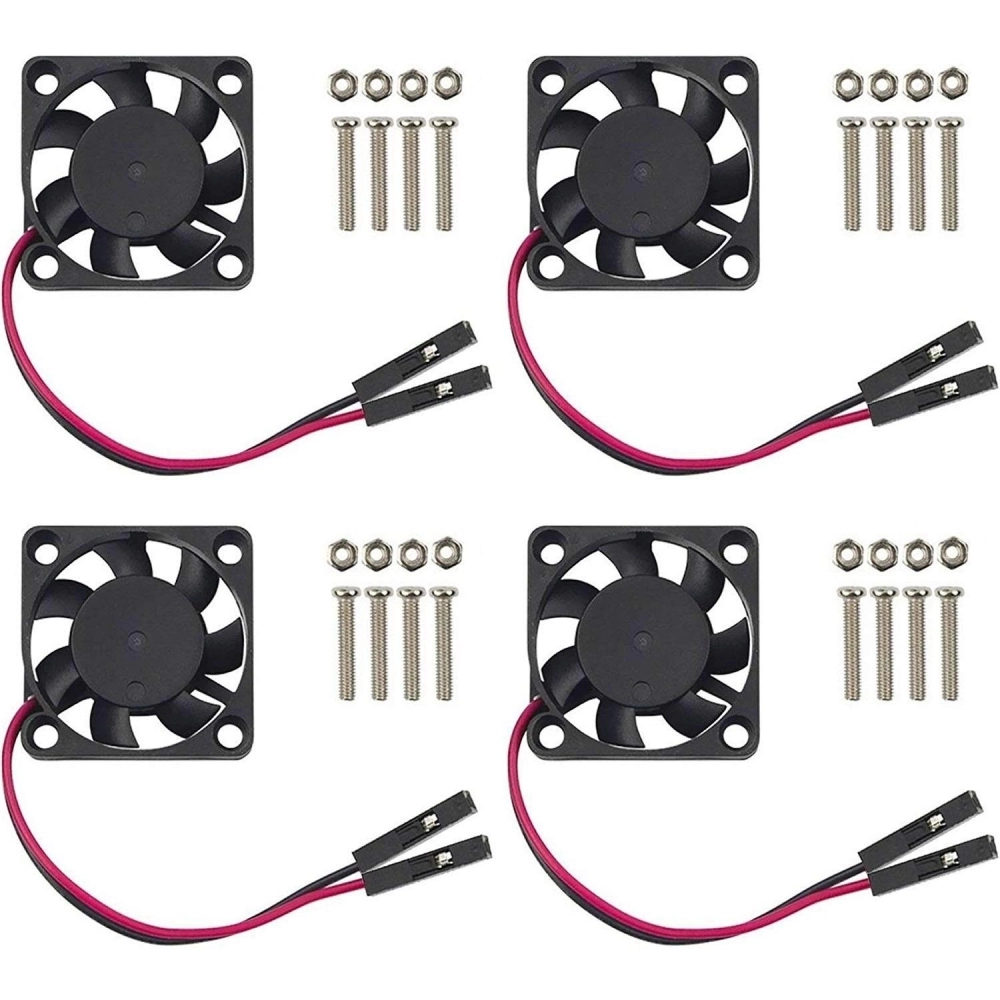

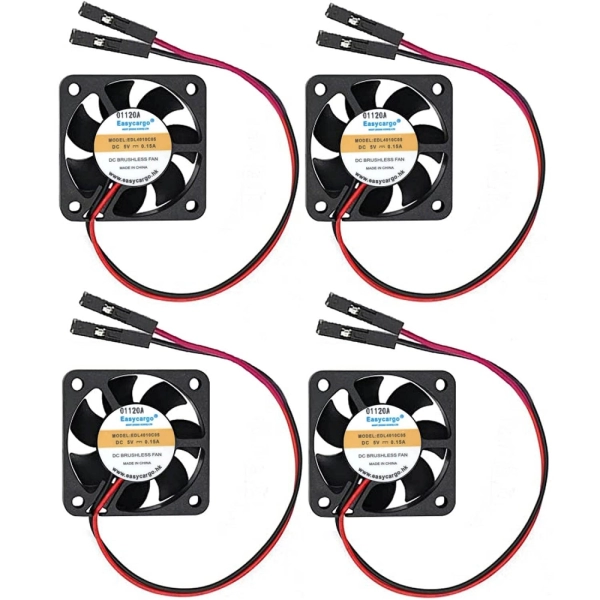

– 4 pieces 40mm Fan 5V DC

– 4 Pack 40mm Fan grill / guard

– Screw and nuts mounting kit.
