2230 SSD Heatsink

Description

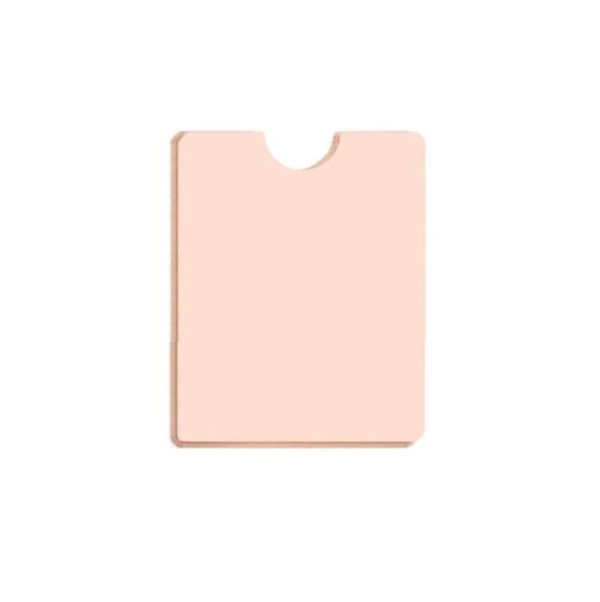

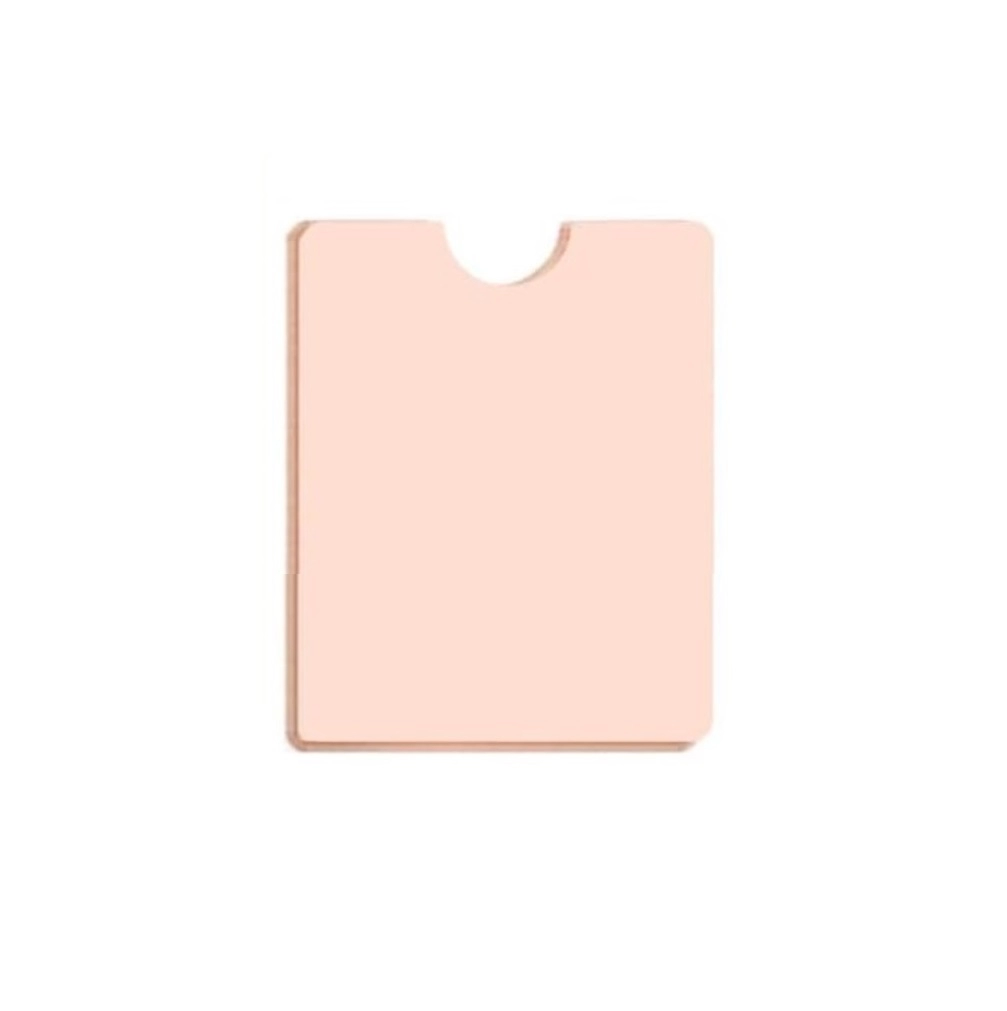

M.2 2230 Copper Heatsink Kit

1 piece 22mm Heatsink 26x22x0.5mm + Thermal Conductive Adhesive Tape  (26mmx22mmx0.5mm)

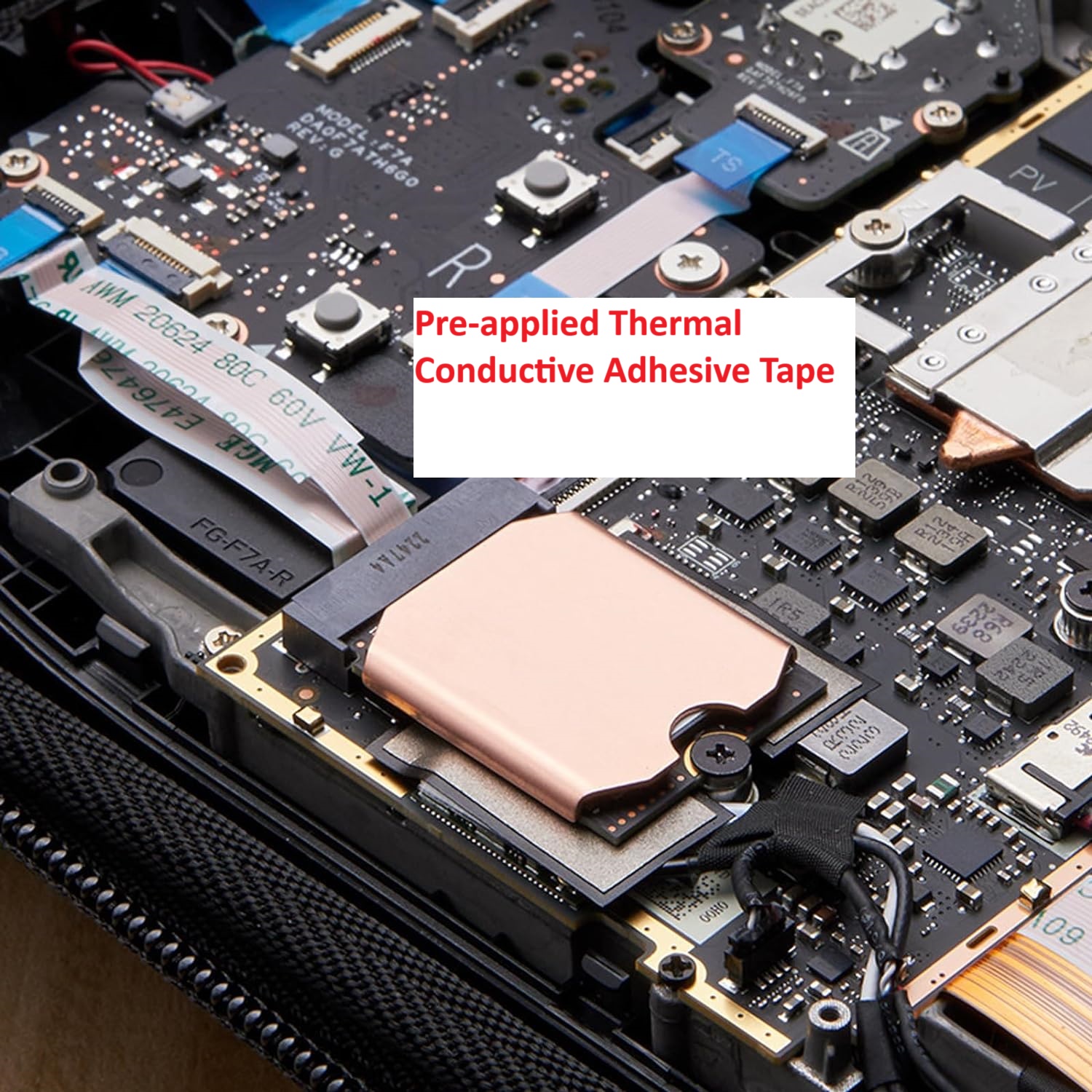

26mm (L) x 22mm (W) x 0.5mm (H) copper pad shim heat sink kit is made from C1100 alloy with high thermal conductivity, that is greatly increases the heat dissipation function, durable structure stability and light weight. The heat sink is a low-profile copper pad shim to fit within cases such as laptops and notebooks.  This kit of heat sink comes with pre-applied 26x22mm double sided thermal conductive adhesive tape (datasheet-8810.pdf), for easy installation and optimum heat conductivity.

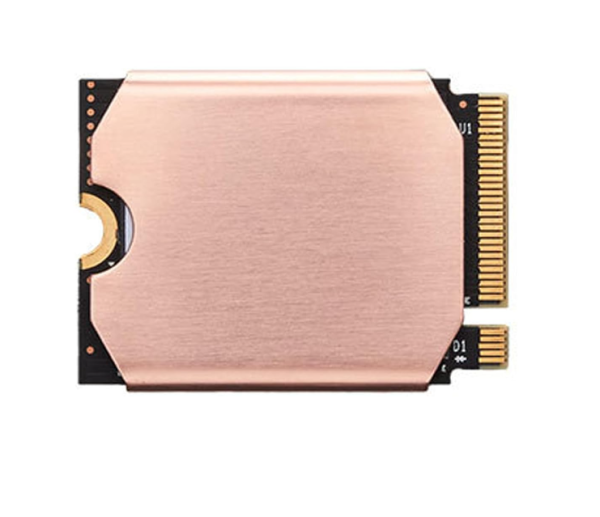

This 2230 SSD M.2 heatsink together with thermal conductive adhesive tape is easy to install and efficient in heat conduction from power source. This copper heat sink kit is suitable for a variety of cooling applications specially for cooling mSATA M.2 2230 SSD Mini-SATA, Raspberry Pi, Graphic card GPU and other electronics and development boards. These heat sinks have profiles which are short enough to fit within standard cases. Can be applied for cooling: mSATA M.2 2230 SSD Mini-SATA. etc

• Mini-SATA M.2 copper heatsink kit

• Material: Copper C1100
• Color: Coppertone
• Coating: Pure copper
• Dimension: 26mm x 22mm x 0.5mm (L*W*H)
• Weight: 3 gram per piece
• Mounting Style: SMD/SMT
• Included 3M™ 8810 thermal conductive adhesive tape

• Tape Thermal Conductivity: 0.60 W/m-K (datasheet-8810.pdf)
• Standard: RoHS Compliance
• Model No: 2622-05C01-8810
• Package Includes: 1 pieces Mini SATA M.2 copper heatsink 2230
