28mm Copper Heatsink 28mmx28mmx4mm

Description

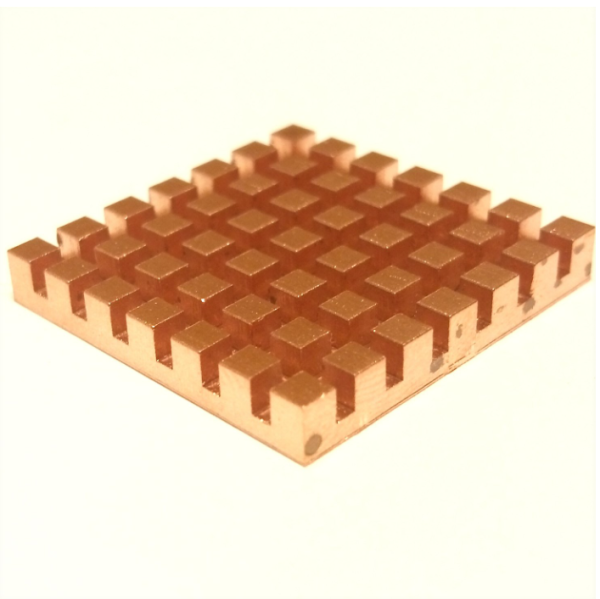

28mm Copper Heat Sink Kit

2pcs 28mm Heatsink 28x28x4mm + Pre-applied  Thermal Conductive Adhesive Tape  (28mmx28mmx4mm) (Copper 28mm)

28mm (L) x 28mm (W) x 4mm (H) copper heat sink kit is made from C1100 alloy with high thermal conductivity, durable structure stability and light weight. The heat sink engraved in vertical and horizontal grooves, that is greatly increases the heat dissipation function. This kit of heat sink comes with 28x28mm pre-applied thermal conductive adhesive tape (datasheet-8810.pdf), for easy installation and optimum heat conductivity.

2pcs 28x28mm copper heatsink together with pre-applied thermal conductive adhesive tape is easy to install and efficient in heat conduction from power source. This 25mm copper heat sink kit is suitable for a variety of cooling applications. These heat sinks have profiles which are short enough to fit within standard cases.

• 28mm copper heatsink kit

• Material: Engraved C1100 Copper
• Color: Copper tone
• Coating: Pure copper
• Dimension: 28mm x 28mm x 4mm (L*W*H)
• Weight: 16 gram per piece
• Mounting Style: SMD/SMT
• Fin Style: Vertical
• Number of fins: 7×7
• Pre applied 3M™ 8810 thermal conductive adhesive tape

• Tape Thermal Conductivity: 0.60 W/m-K (datasheet-8810.pdf)
• Standard: RoHS Compliance
• Model No: 282804C02-8810
• Package Includes: 2 pieces 28mm copper heatsink
