3D Printer Stepper Driver Heatsink

Description

9mm Cooler Heatsink Kit 9mm x 9mm x 12mm + pre-applied Thermal Conductive Adhesive Tape, Cooler Heat Sink for Cooling  3D printer Stepper Driver (9mmx9mmx12mm).

9mm (L) x 9mm (W) x 12mm (H) extruded aluminum heat sink kit is made from 6063-T5 aluminum alloy with high thermal conductivity 201 W/m.K, structure stability and light weight. The heat sink extrusion is in vertical and horizontal grooves, that is greatly increases the heat dissipation function. The surface of extruded aluminum is anodized in black. This kit of heat sink comes with 9x7mm pre-applied thermal conductive adhesive tape (datasheet-8810.pdf), for easy installation and optimum heat conductivity.

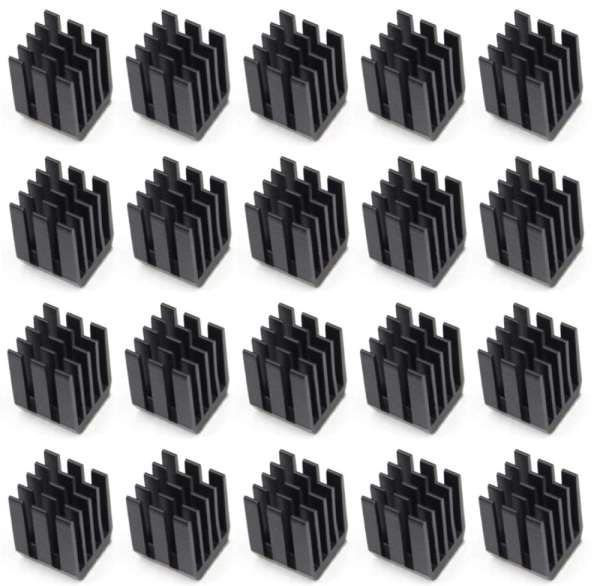

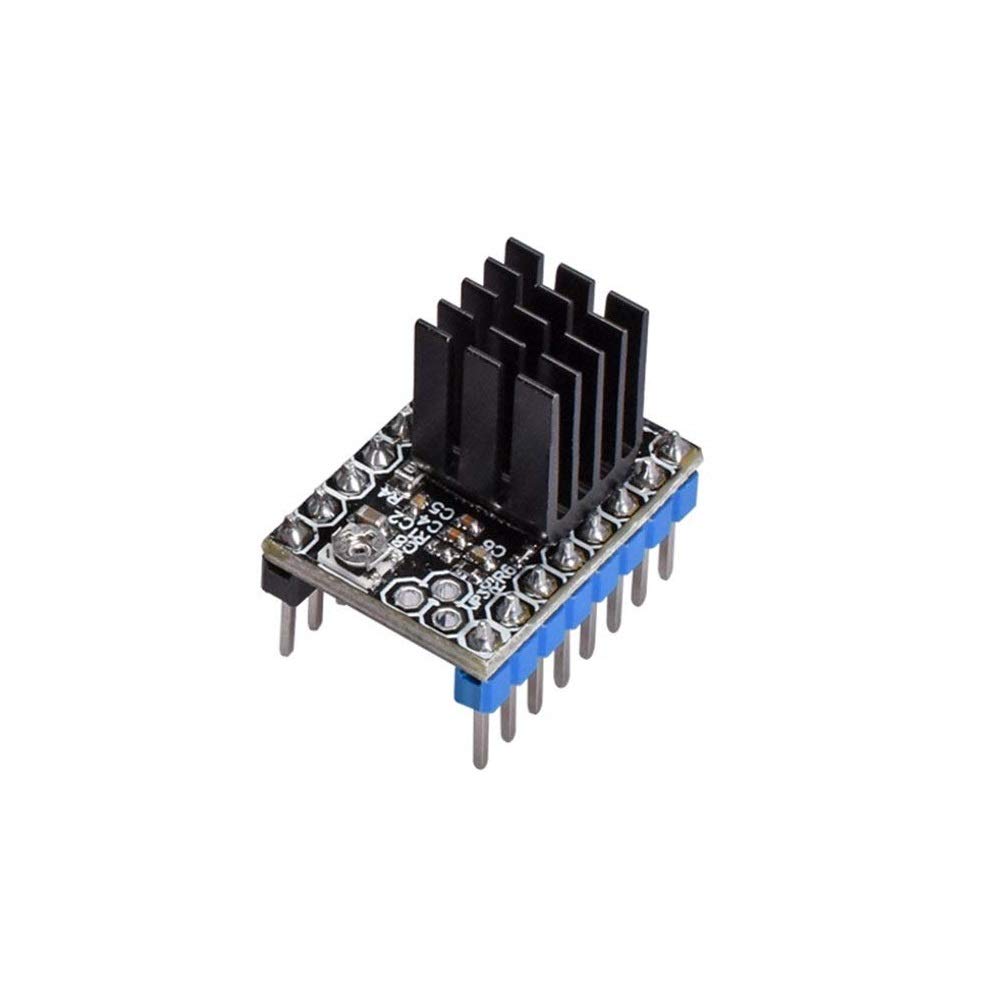

30pcs anodized black 9×9 heatsink together with pre-applied thermal conductive adhesive tape is easy to install and efficient in heat conduction from 3D printer Stepper Driver Modules.

• 9mm aluminum heatsink kit

• Material: Extruded Aluminum 6063-T5
• Color: Black
• Coating: Anodized

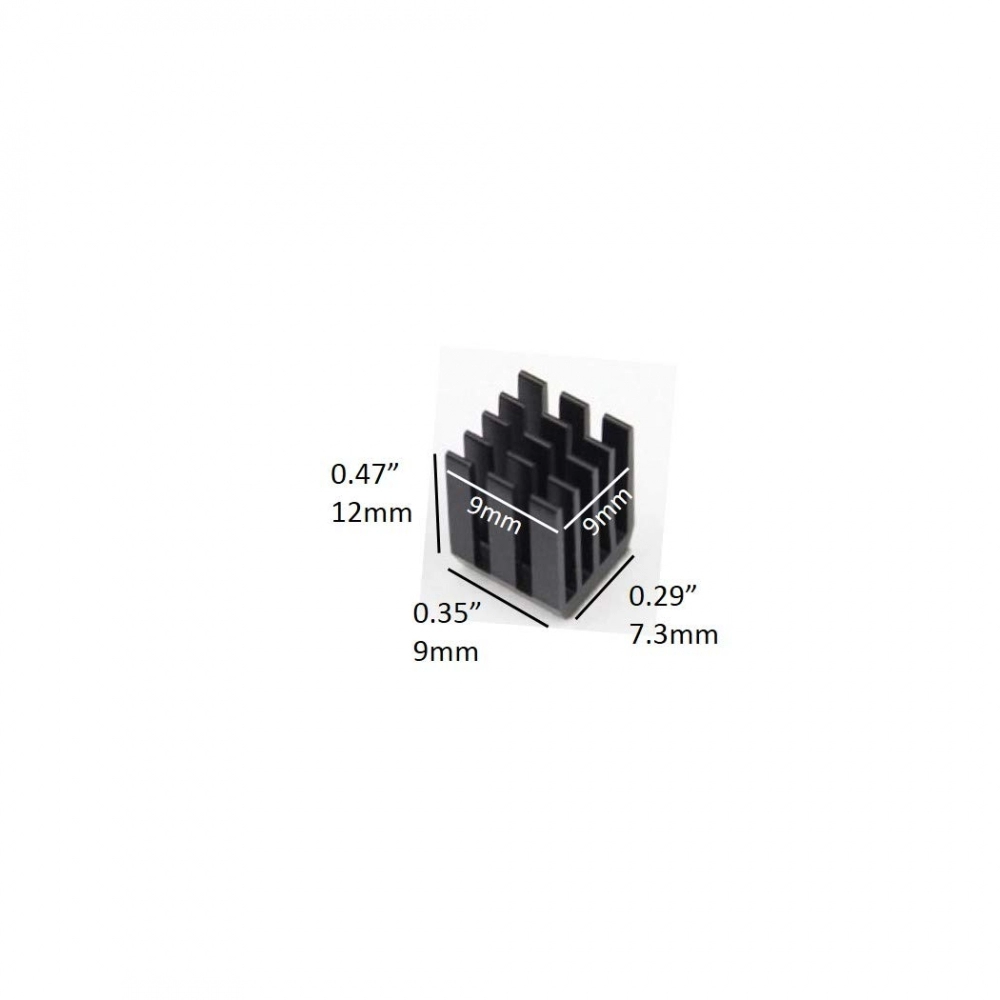

• Dimension: 9mm x 9mm x 12mm (L*W*H)
• Weight: 0.8 gr per piece
• Mounting Style: SMD/SMT
• Fin Style: Vertical
• Number of fins: 5×3
• Pre applied 3M™ 8810 thermal conductive adhesive tape

• Tape Thermal Conductivity: 0.60 W/m-K (datasheet-8810.pdf)
• Standard: RoHS compliance
• Model No: 090912Black30-8810
• Package Includes: 30 pieces aluminum heatsink
