25mm Heatsink 50x25x5mm

Description

4 pieces 25mm Heatsink 50x25x5mm + pre Applied Thermal Conductive Adhesive Tape for Cooling LED Modules GPU Chips VRAM VGA RAM Electronics Devices (50mm x 25mm x 5mm) (Black 25mm)

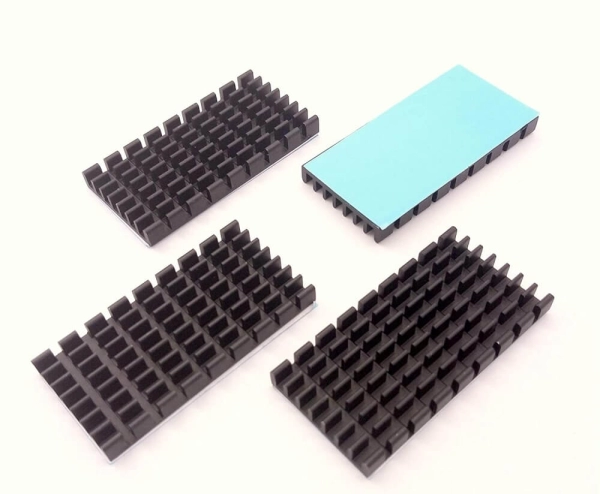

50mm (L) x 25mm (W) x 5mm (H) extruded aluminum heat sink kit is made from 6063-T5 aluminum alloy with high thermal conductivity, structure stability and light weight. The heat sink extrusion is in vertical and horizontal grooves, that is greatly increases the heat dissipation function. The surface of extruded aluminum is anodized in black. This kit of heat sink comes with 50mm x 25mm thermal conductive double sided adhesive tape (datasheet-8810.pdf), for easy installation and optimum heat conductivity.

4 pieces anodized black 50x25mm heatsink together with pre-applied thermal conductive adhesive tape is easy to install and efficient in heat conduction from power semiconductor sources BGA. This heat sink kit is suitable for a variety of cooling applications such as Raspberry Pi, LED Modules, SOC, MOS, VRAM, RAM, IC Chips, Electronics Components etc.

• 50mm x 25mm aluminum heatsink kit

• Material: Extruded Aluminum 6063-T5
• Color: Black
• Coating: Anodized
• Dimension: 50mm x 25mm x 5mm (L*W*H)
• Weight: 7 gr per piece
• Mounting Style: SMD/SMT
• Fin Style: Vertical
• Number of fins: 9×8
• Pre applied 3M™ 8810 thermal conductive adhesive tape

• Tape Thermal Conductivity: 0.60 W/m-K (datasheet-8810.pdf)
• Standard: RoHS compliance
• Model No: 502505-8810
• Package Includes: 4 pieces heatsink
