Description

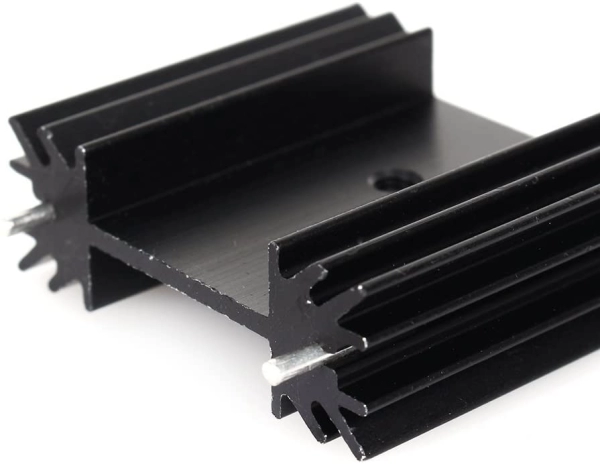

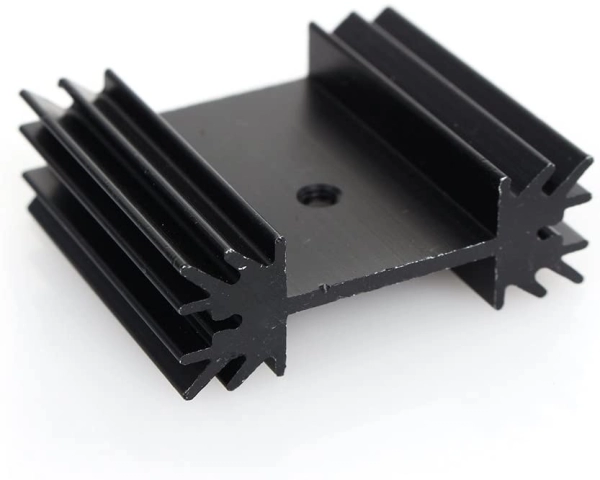

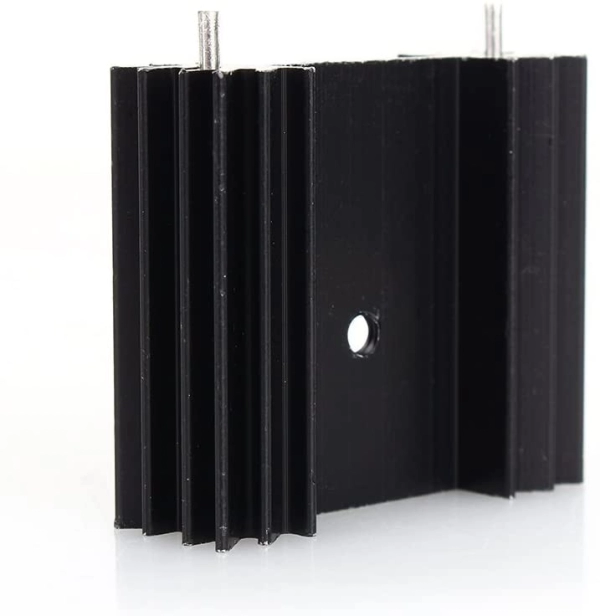

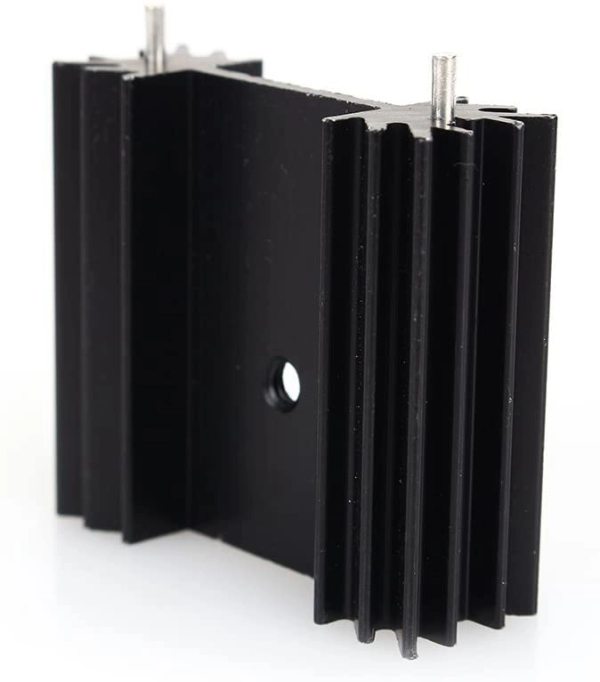

To-247 Aluminum Heatsink, includes the TO-247 heat sink used for heat dissipation of TO-220/TO-247 power Transistor regulator ICs SCR MOSFET such as for cooler cooling voltage/power regulators LM78XX, LM317, TDAXX etc
- Aluminum Heatsink for TO-220 TO-247 power semiconductor packages.
- Mounting accessories included (Screws, Bushings, Insulators).

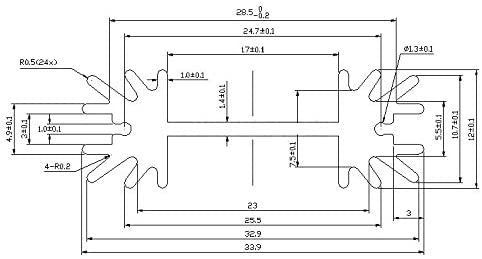

- Size: 1.3″x0.99″x0.47″ / 25mm x 34mm x 12mm
- Weight: 0.4 oz / 10 gr
- Material: Extruded Aluminum 6063-T5
- Color: Black
- Coating: Anodized
- Fin Style: Vertical
- Number of fins: 16 (2×8)
- Mounting Style: Through Hole (Fully threaded).
- Hole threaded size: M3, thickness: 1.5mm
- Can be applied for cooling TO-247 LM78XX, LM317, TDAXX etc
- Standard: RoHS compliance
- Model No: 243512B05

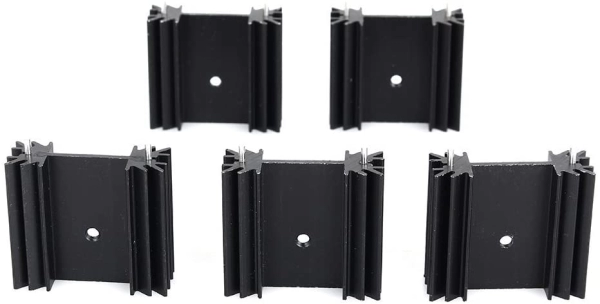

- Package Includes: 5 pieces aluminum heatsink + mounting accessories.
