9mm Heatsink 9x9x5mm

Description

20pcs 9mm Heatsink Small Heatsink Kit + 3M 8810 thermal conductive adhesive tape, mini cooler Heat Sink for cooling VRM Stepper Driver MOSFET VRam Regulators (8.8mmx8.8mmx5mm)

9mm (L) x 9mm (W) x 5mm (H) extruded aluminum heat sink kit is made from 6063-T5 aluminum alloy with high thermal conductivity, structure stability and light weight. The surface of extruded aluminum is anodized in black. This kit of heat sink comes with 9x9mm pre-applied thermal conductive adhesive tape (datasheet-8810.pdf), for easy installation and optimum heat conductivity.

10pcs anodized black 9×9 heatsink together with pre-applied thermal conductive adhesive tape is easy to install and efficient in heat conduction from power semiconductor sources BGA. This 9mm heatsink kit is suitable for a variety of applications such as VRM Stepper Driver MOSFET VRam Regulators, etc.

• 9mm aluminum heatsink kit

• Material: Extruded Aluminum 6063-T5
• Color: Black
• Coating: Anodized

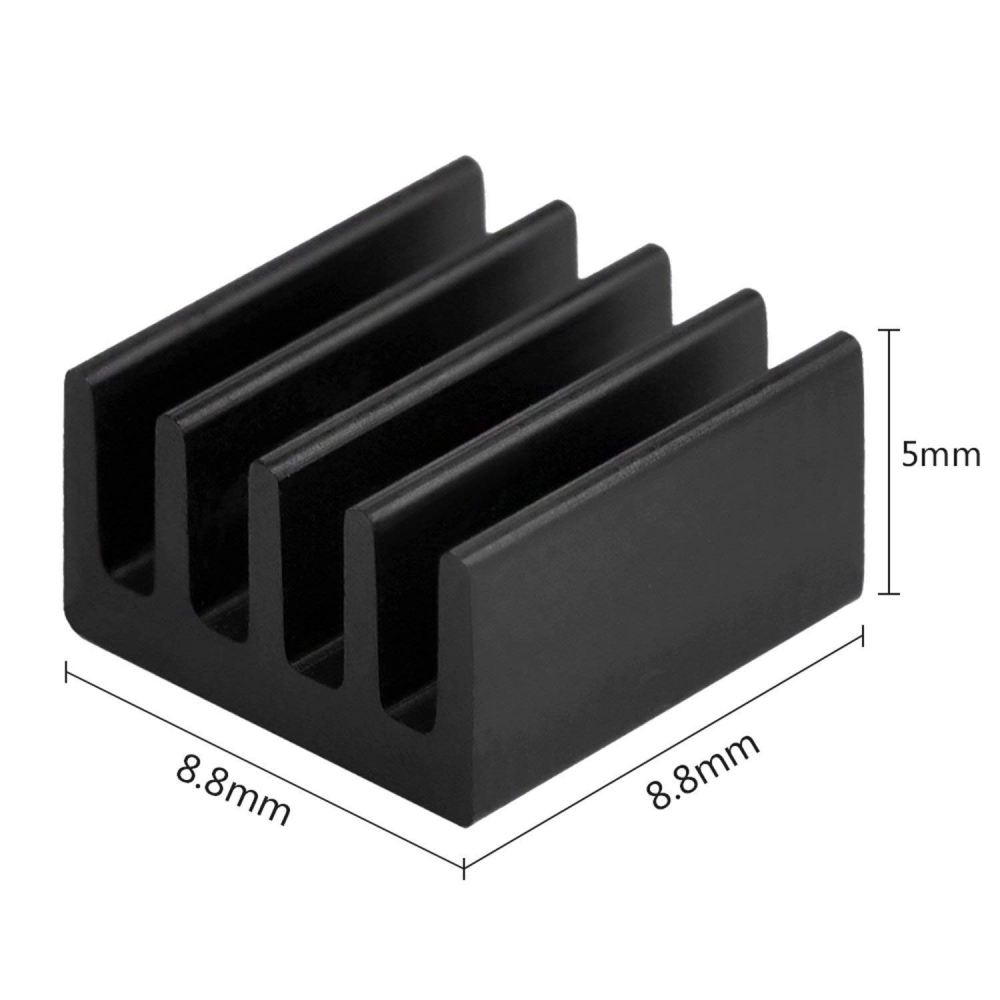

• Dimension: 8.8mm x 8.8mm x 5mm (L*W*H)
• Weight: 0.8 gr per piece
• Mounting Style: SMD/SMT
• Fin Style: Simple Cut
• Number of fins: 4×1
• Pre applied 3M™ 8810 thermal conductive adhesive tape

• Tape Thermal Conductivity: 0.60 W/m-K (datasheet-8810.pdf)
• Model No: 090905B20-8810
• Package Includes: 20 pieces 9mm heatsink
